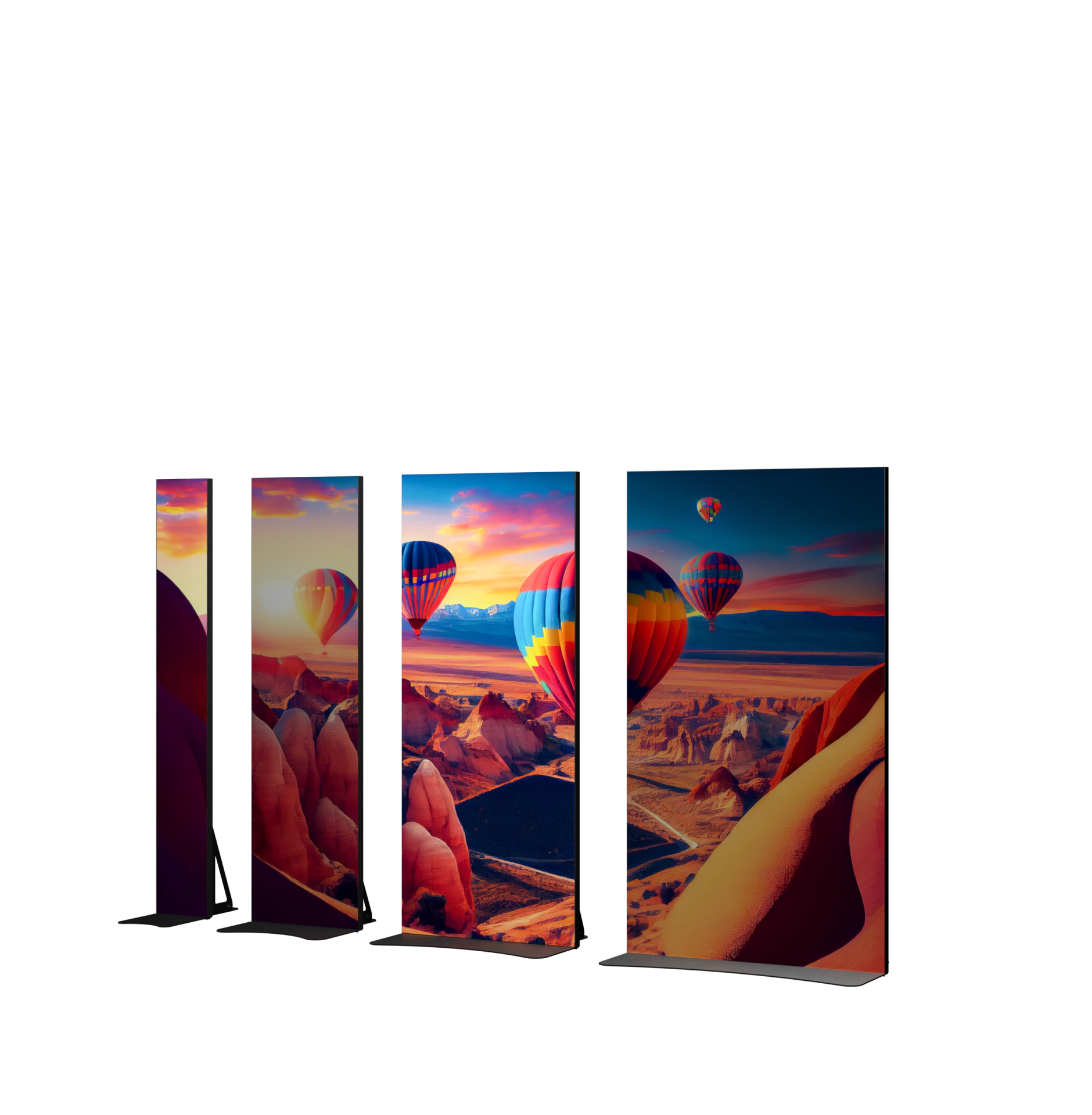

Description of LEDUP 2.6mm Semi Outdoor (HDMI Input)

General Features:

• Operating Environment: Semi Outdoor
• Pixel Pitch: 2.6mm
• Service Type: Front access
• Calibrated Brightness: 1,500 nits
• Lamp Type: SMD
• Lifespan (at 50% brightness): >100,000 hours
• White Color Calibration (adjustable): 3,500K ~ 8,500K
• Gray Scale: >16 bits
• Brightness Control: 256 levels

Module Specifications:

• Refresh Rate: 3,840Hz
• LED Drive Method: Dynamic
• Module Material: Plastic
• PCB Type: Multilayer
• PCB Surface Coating: Humiseal

Panel Specifications:

• Product Material: Aluminum
• Screen Dimensions (mm):
  • 281 x 2,000 (1)
  • 562 x 2,000 (2)
  • 843 x 2,000 (3)
  • 1,124 x 2,000 (4)
• Product Depth: 53mm
• Diagonal Size:
  • 80” (1)
  • 82” (2)
  • 85” (3)
  • 90” (4)
• Aspect Ratio:
  • 2.25:16 (1)
  • 4.5:16 (2)
  • 6.75:16 (3)
  • 9:16 (4)
• IP Rating: IP65 (Front), IP22 (Back)
• Product Weight (approx. single side):
  • 22kg (1)
  • 38kg (2)
  • 75kg (3)
  • 95kg (4)
• Screen Resolution:
  • 108 x 768 pixels (1)
  • 216 x 768 pixels (2)
  • 324 x 768 pixels (3)
  • 432 x 768 pixels (4)
• Viewing Angle (Horizontal x Vertical): >160° x 140°
• Minimum Viewing Distance: >3.0m
• Operating Temperature Range: -10°C ~ +50°C
• Storage Temperature Range: -20°C ~ +60°C
• Operating Humidity: 10% ~ 90% (non-condensing)

Electrical Specifications:

• Power Input Voltage: 110V ~ 240V AC
• Power Input Frequency: 50Hz ~ 60Hz
• Average Power Consumption: <180W ~ 350W
• Max Power Consumption: <500W ~ 750W
• Active PFC (Power Factor Correction): Yes
• Load Tolerance: 25% minimum
• Cooling: Passive cooling
• Product Color: Grey (RAL 7016)

Additional Features:

• Internal Player: Yes
• Combined Screen Function: Yes
• Installation Type: Stand, hanging, or wall mounting
• Brightness Adjustment: Automatic & manual
• Dead Pixel Monitoring: N/A
• Module Monitoring: N/A
• Temperature Monitoring: Yes
• Signal Path Backup: Yes
• Signal Transmission: CAT or Fiber Optic
• Standby Scheduling: Yes
• Power On/Off Scheduling: Optional
• Power Saving Mode: Yes

Certifications:

• CE-EMC
• CE-LVD
• RoHS
• FCC
