NOVASTAR A10S PLUS
(0) Yorum - 0 Puan
0,00 USD

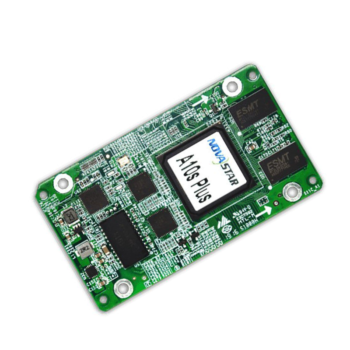

Novastar A10S Plus High-end Large LED Panel Receiving Card
Description:
The Novastar A10S Plus is a high-end receiving card developed by NovaStar, designed for large LED panels. It features a small size with a large loading capacity, supporting up to 512×512 pixels on a single card. The card supports up to 32 groups of parallel data or 64 groups of serial data, making it suitable for high-end applications.
Features:
- Advanced Hardware Design: Small footprint for saving cabinet space; high-density connector to prevent dust and vibration effects; integrated network transformer for improved electromagnetic compatibility.
- Useful Software Design: Supports 1/64 Scan, random order scanning, precise grayscale correction, HDR function, and more.
- Additional Software Features: Supports auto module calibration, quick seam correction, smart module, voltage and temperature monitoring, and much more.
- Support for Image Rotation: Supports image rotation in 90° increments and display rotation at any angle.
Parameter:
| Parameter | Value |
|---|---|
| Maximum Loading Capacity | 512×512 pixels |
| Input Voltage | DC 3.3 V– 5.5 V |
| Rated Current | 0.5 A |
| Rated Power Consumption | 2.5 W |
| Operating Temperature | -20°C–70°C |
| Operating Humidity | 10% RH–90% RH, non-condensing |
| Storage Temperature | -25°C–125°C |
| Storage Humidity | 10% RH–90% RH, non-condensing |
| Packing Specifications | Antistatic bag and anti-collision foam for each card; 40 cards per packing box |
| Packing Box Dimensions | 378.0 mm × 190.0 mm × 120.0 mm |
| Dimensions | 80.0 mm × 45.0 mm × 7.3 mm |
| Net Weight | 22.3 g |
| Certifications | RoHS, EMC Class B |
