NOVASTAR A7S PLUS

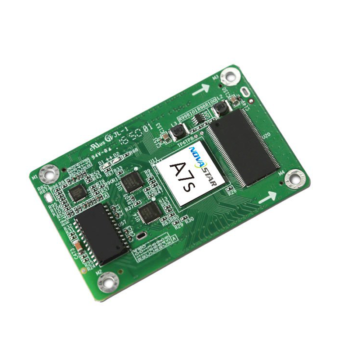

Novastar A7S Plus Receiving Card
Description:
The Novastar A7S Plus receiving card is a high-end receiving card developed by NovaStar. It features a compact size with a large loading capacity, supporting up to 512 x 512 (PWM IC) pixels per card. The A7S Plus can work with the MCTRL R5 independent controller, allowing for flexible display rotation at any angle. It is also compatible with the MCTRL4K controller, supporting HDR10-compliant video input to deliver higher dynamic brightness and a wider color gamut for smoother, more detailed images.
Key Features:
- Large Loading Capacity: Supports up to 512 x 512 pixels per card, allowing for high-resolution displays.
- HDR10 Support: When used with the MCTRL4K controller, the A7S Plus can handle HDR10-compliant video input, improving the dynamic brightness range and color space for better image quality.
- Pixel-Level Calibration: Works with NovaLCT and NovaCLB to perform pixel-level brightness and chroma calibration, effectively removing color discrepancies and ensuring uniformity in image quality.
- Image Rotation: Supports image rotation in 90° increments, giving users greater flexibility in display design and configuration.
- Enhanced User Deployment: Both the hardware and software design focus on simplifying deployment, ensuring stable operation, and facilitating efficient maintenance for long-term reliability.
Software and Hardware Design:
The design of the A7S Plus receiving card is optimized for ease of use and efficient maintenance. Its compatibility with various NovaStar controllers and calibration tools makes it ideal for users who need high-quality and consistent LED display performance. The A7S Plus is built to provide long-term stability and superior image quality while maintaining a streamlined setup process.
Parameter:
| Parameter | Value |
|---|---|
| Maximum Loading Capacity | 512 x 512 (PWM IC) |
| Input Voltage | DC 3.3 V–5.5 V |
| Rated Current | 0.5 A |
| Rated Power Consumption | 2.5 W |
| Operating Temperature | -20°C–70°C |
| Storage Temperature | -25°C–125°C |
| Operating Humidity | 10% RH–90% RH |
| Dimensions | 80.0 mm × 45.0 mm × 9.1 mm |
| Net Weight | 22.3 g |
| Certifications | RoHS, EMC Class B |
| Packing | Antistatic bag and anti-collision foam for each card; 40 cards per packing box |
| Packing Box Dimensions | 378 mm × 190 mm × 120 mm |
