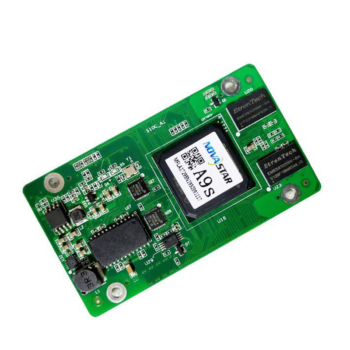

Novastar A9S High-end Large LED Display Screen Receiving Card
Description:
The Novastar A9S is a high-end receiving card developed by NovaStar, specifically designed for large LED display screens. It has a small size but supports a large loading capacity of up to 512×512 (PWM IC) pixels on a single card. This receiving card is engineered for high-end applications and features advanced hardware and software design for optimal performance.
Features:
- Advanced Hardware Design: Compact hardware footprint suitable for applications with limited cabinet space and small pixel pitch; dust-resistant high-density connector for stability and reliability; integrated network transformer with simple design for improved magnetic compatibility.
- Useful Software Design: Supports LVDS transmission, smart module, quick seam correction, and 3D function. Offers auto module calibration, mapping function, pre-stored image settings, and module Flash management.
- Additional Features: Voltage and temperature monitoring, Ethernet cable communication status monitoring, supports 5-pin LCD module, and image rotation in 90° increments.
Parameter:
| Parameter | Value |
|---|---|
| Input Voltage | DC 3.3 V–5.5 V |
| Rated Current | 0.5 A |
| Rated Power Consumption | 2.5 W |
| Operating Temperature | -20°C–70°C |
| Storage Temperature | -25°C–125°C |
| Operating Humidity | 10% RH–90% RH |
| Dimensions | 80.0 mm × 45.0 mm × 9.1 mm |
| Net Weight | 22.3 g |
| Certifications | RoHS, EMC Class B |
| Packing | Antistatic bag and anti-collision foam for each card; 40 cards per packing box |
| Packing Box Dimensions | 378 mm × 190 mm × 120 mm |
