NOVASTAR MRV 330

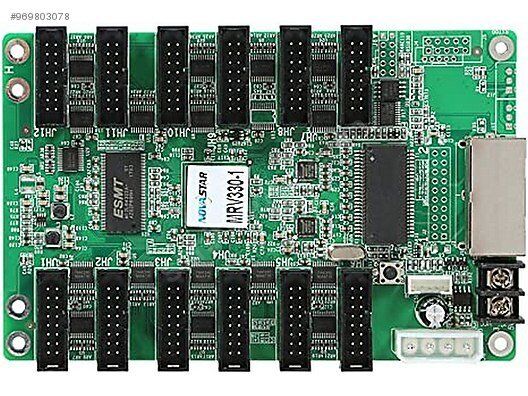

Novastar MRV330-1 Receiving Board Integrated with HUB75

Description:

The Novastar MRV330-1 Receiving Board is an advanced data receiving card from the Nova M3 series, designed to integrate the HUB75 function into a single card without needing an additional HUB structure. This card supports up to 24 groups of RGB data and is capable of supporting a resolution of 256x220. It comes with several monitoring and calibration features, including temperature monitoring, power supply voltage detection, and pixel-level brightness and chromaticity calibration. With support for high gray scale and refresh rates, it ensures high-quality display performance. This product complies with EU RoHS and CE-EMC standards.

Key Features:

• Integrated HUB75: 12 standard HUB75 connectors integrated into the card.
• RGB Data Output: 24 groups of RGB data output.
• Resolution Support: 256x220 resolution.
• Configuration File Readback: Supports configuration file readback.
• Program Copy: Supports program copy function.
• Monitoring Features: Includes temperature, power supply voltage, and Ethernet cable communication status detection.
• High Gray Scale & Refresh Rate: Supports high gray scale and refresh rate for smoother display performance.
• Calibration: Supports pixel-level brightness and chromaticity calibration for each LED.
• Pre-stored Settings: Supports pre-store picture settings.
• EMC & RoHS Compliance: Complies with EU RoHS and CE-EMC standards.

Parameter:
