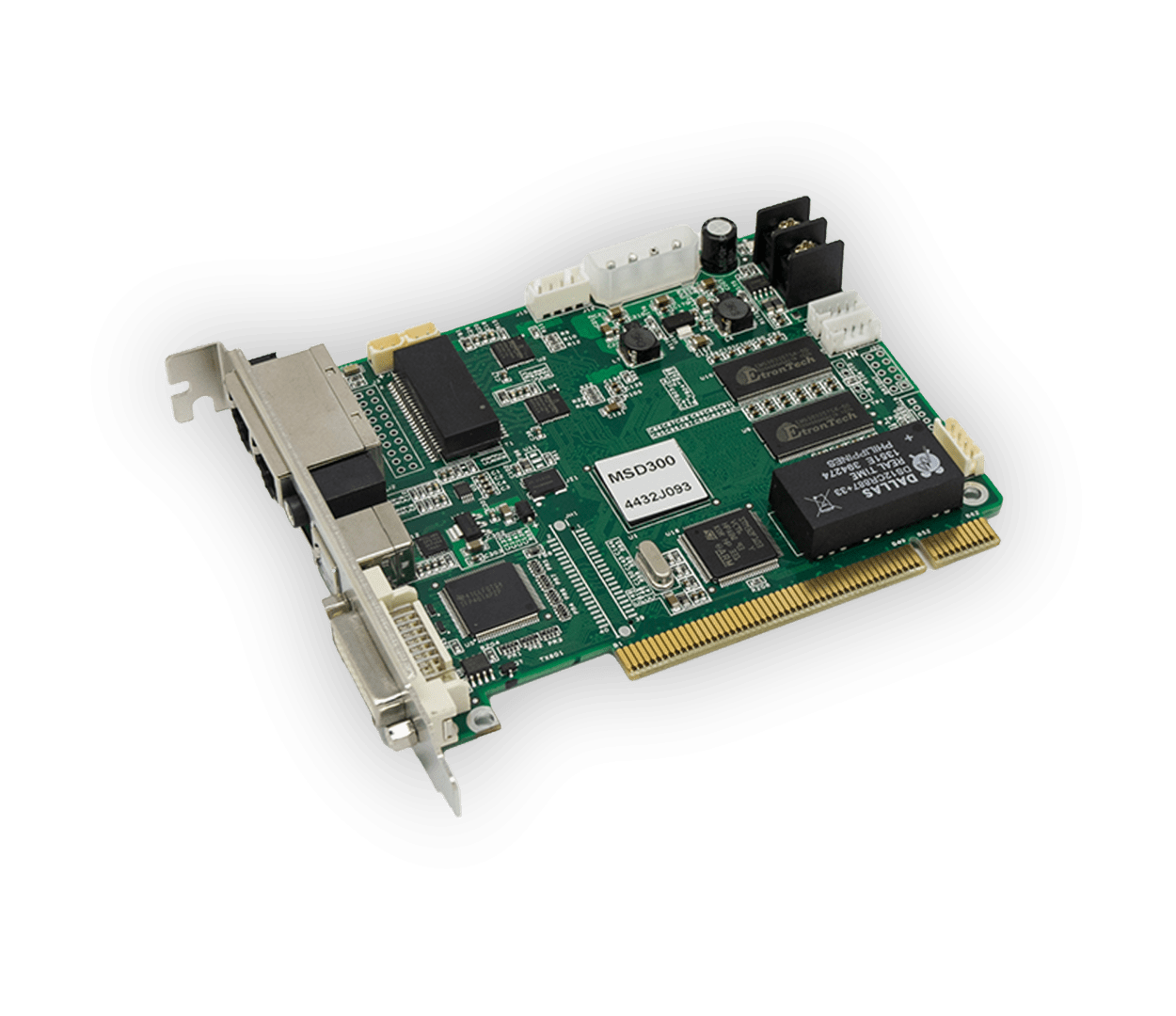

NOVASTAR MSD 300

LED Screen Specifications

Key Features:

• Capacity: 1.3 million pixels
• Resolution: 1280×1024 (DVI)
• Inputs:
  • 1x DVI video input
  • 1x audio input
• Ethernet Outputs: 2x Ethernet port outputs
• Control Interface: USB control interface, can be cascaded
• Light Sensor Interface: 1 interface
• Single Card Resolution:
  • 1280×1024
  • 1024×1200
  • 1600×848
  • 1920×712
  • 2048×668
• Input Voltage: DC 3.3 V–5.5 V
• Rated Current: 0.5 A
• Rated Power Consumption: 2.5 W
• Temperature: -20°C–75°C
• Humidity: 0% RH–90% RH, non-condensing
• Certifications: EMC, RoHS, PFoS, FCC
